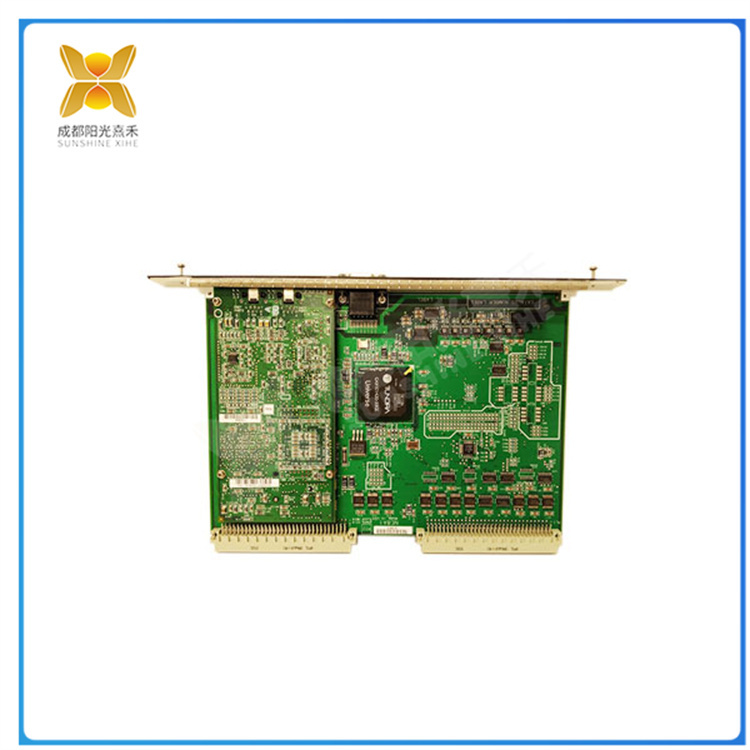

IC698ETM001 以太网接口模块 实现了数据的传输和共享

IC698ETM001 以太网接口模块是网络设备中用于在以太网网络和设备之间传送帧的重要组件。该模块通常包含双工端口，这些端口可以操作以在以太网网络和设备之间传输数据。此外，以太网接口模块还包含一个路径，该路径将双工端口的接收部分耦合到其发送部分。在这个路径中，通常会有队列设置，用于管理待发送的数据帧。IC698ETM001 以太网接口模块通常可以工作在两种模式中。在第一种模式中，每个接收到的帧都会被回送出全双工端口。在第二种模式中，只有满足预定评估标准的帧才会被回送出双工端口，而不满足标准的帧则会被丢弃。这种评估通常是由耦合到队列的评估装置完成的，它会确定接收的帧是否寻址到以太网接口模块，并检查帧类型字段是否包含正确的帧类型。总的来说，IC698ETM001 以太网接口模块是现代网络设备中不可或缺的一部分，它使得设备能够在以太网网络中进行通信，从而实现了数据的传输和共享。

IC698ETM001

The IC698ETM001 Ethernet interface module is an important component in network devices used for transmitting frames between Ethernet networks and devices. This module typically includes duplex ports that can be operated to transfer data between Ethernet networks and devices. In addition, the Ethernet interface module also includes a path that couples the receiving portion of the duplex port to its transmitting portion. In this path, there are usually queue settings used to manage the data frames to be sent. The IC698ETM001 Ethernet interface module typically operates in two modes. In the first mode, each received frame will be looped back out of the full duplex port. In the second mode, only frames that meet the predetermined evaluation criteria will be sent back to the duplex port, while frames that do not meet the criteria will be discarded. This evaluation is usually completed by an evaluation device coupled to a queue, which determines whether the received frame is addressed to the Ethernet interface module and checks whether the frame type field contains the correct frame type. Overall, the IC698ETM001 Ethernet interface module is an indispensable part of modern network devices, enabling devices to communicate in Ethernet networks, thereby achieving data transmission and sharing.
