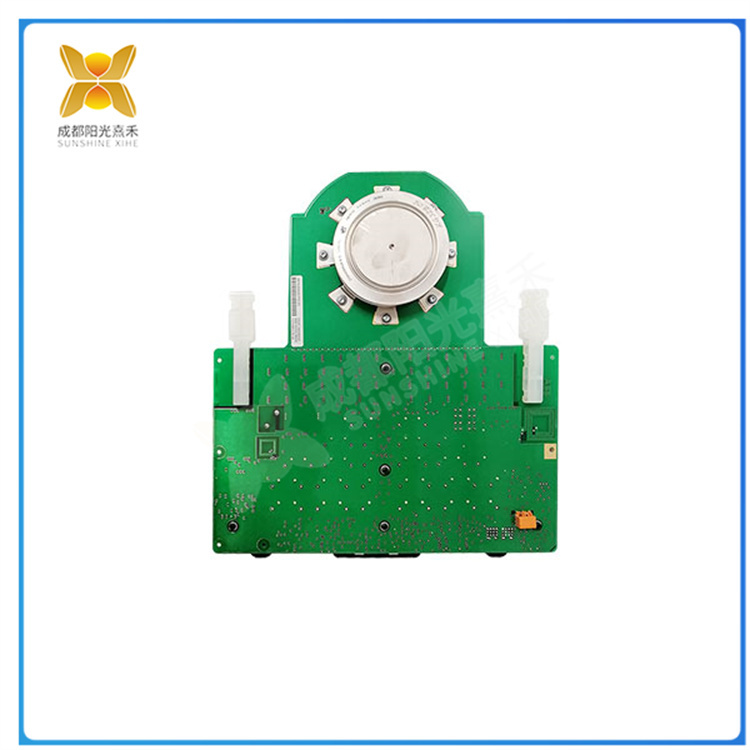

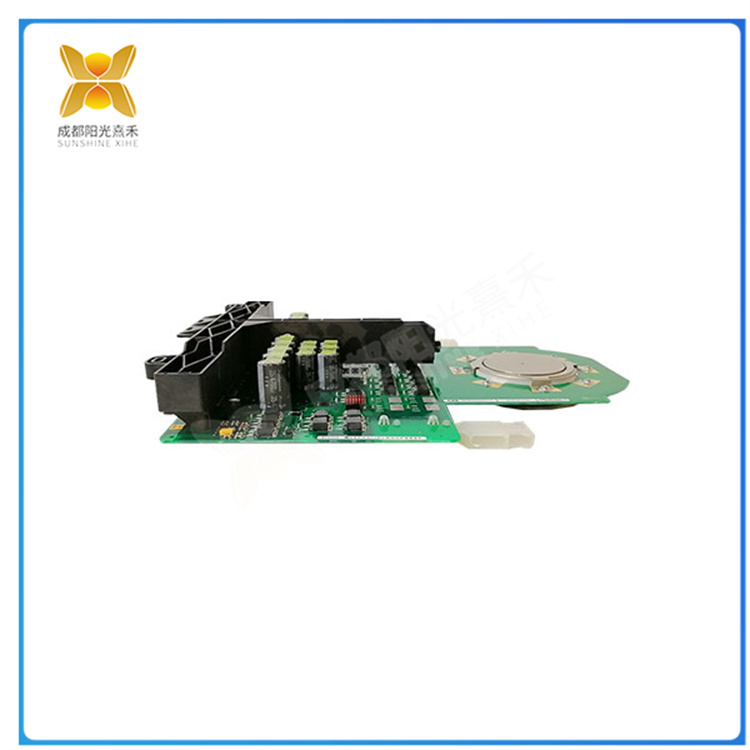

5SHX1445H0002 可控硅晶闸模块 可以承受较高的电压

5SHX1445H0002  可控硅晶闸模块通常被称之为功率半导体模块。这种模块采用模块封装形式，具有三个PN结的四层结构，是大功率半导体器件。可控硅模块从内部封装芯片上可以分为可控模块和整流模块两大类。从具体的用途上区分，可以分为：普通晶闸管模块、普通整流管模块、普通晶闸管、整流管混合模块、快速晶闸管、整流管及混合模块、非绝缘型晶闸管、整流管及混合模块也就是通常所说的电焊机专用模块、三相整流桥输出可控硅模块、单相整流桥模块、单相半控桥模块以及肖特基模块等。

5SHX1445H0002

此外，5SHX1445H0002  可控硅模块具有多种规格型号，例如mtc110a-16、mtc130a-16等。这些模块具有不同的电流和电压等级，以满足不同应用的需求。5SHX1445H0002  可控硅晶闸模块被广泛应用于各种电力电子设备中，如电机控制、电源管理、照明调节、温度控制等。它们通过控制电流的通断来实现对电路的控制，具有快速响应、高效率、稳定性好等优点。

5SHX1445H0002

The 5SHX1445H0002 thyristor module is commonly referred to as a power semiconductor module. This module adopts a modular packaging form, with a four layer structure of three PN junctions, and is a high-power semiconductor device. Thyristor modules can be divided into two categories from the perspective of internal packaging chips: controllable modules and rectifier modules. From specific purposes, it can be divided into: ordinary thyristor module, ordinary rectifier module, ordinary thyristor, rectifier hybrid module, fast thyristor, rectifier and hybrid module, non insulating thyristor, rectifier and hybrid module, which is commonly referred to as welding machine specific module, three-phase rectifier bridge output thyristor module, single-phase rectifier bridge module, single-phase half control bridge module, and Schottky module.

5SHX1445H0002

In addition, the 5SHX1445H0002 thyristor module has multiple specifications and models, such as mtc110a-16, mtc130a-16, etc. These modules have different current and voltage levels to meet the needs of different applications. The 5SHX1445H0002 thyristor module is widely used in various power electronic devices, such as motor control, power management, lighting regulation, temperature control, etc. They control the circuit by controlling the on/off of the current, and have advantages such as fast response, high efficiency, and good stability.
