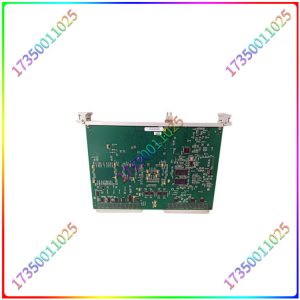

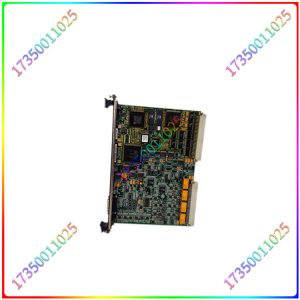

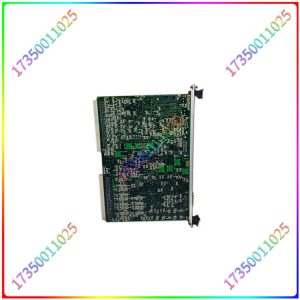

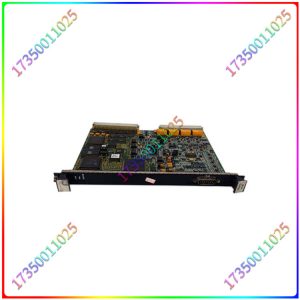

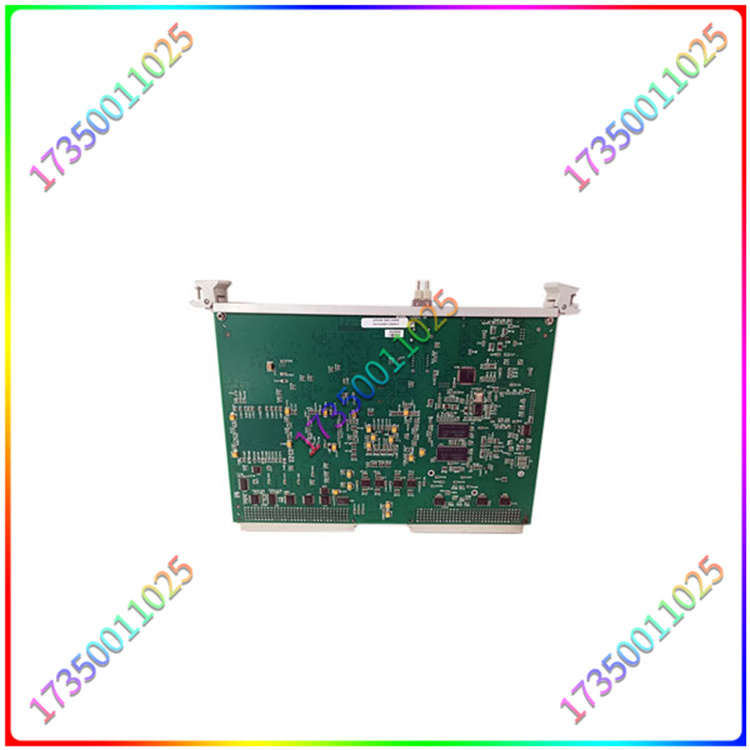

IS200VSVOH1B是通用电气制造的VME伺服控制板，属于燃气轮机控制系统中使用的Mark VI系列的一部分。操作蒸汽/燃料阀的四个电液伺服阀在伺服控制(VSVO)板的指导下。通常，使用两个伺服端子板来分隔这四个通道(TSVO或DSV0)。使用线性可变差动变压器确定阀门位置(LVDT)。VSVO执行环路控制算法。在前面板上的J5插头和VME机架上的J3J4连接器上，三根电缆连接到VSVO。JR1连接器用于.TSVO提供单工信号，而JR1、JS1和JT1连接器用于扇出TMR信号。
IS200VSVOH1B
将保护模块的外部跳闸插入JD1或JD2。IS20ovsvOH1B安装：关闭VME的处理器机架。将板放置到位，然后用手将顶部和底部控制杆按入边缘连接器的底座中。拧紧前面板顶部和底部的自攻螺钉。与TSVO端子板的电缆连接通过VME机架上下部的J3和J4连接器进行。为了固定电缆，它们采用闭锁连接。启动VME机架并查看前面板上的诊断指示灯。IS20ovsvOH1B操作：LVDT位置反馈、LVDT激励、双向伺服电流输出和脉冲率流量输入均包含在VSVO的四个通道中。
IS200VSVOH1B
对于每个伺服控制环路，可以选择一个、两个、三个或四个LVDT。对于测量燃气轮机流量的应用，提供了三个输入。这些信号通过TSVO并直接发送到VSVO板正面的J5。断电时，每个伺服输出都有一个专用自杀继电器，在由固件控制时，会将VSVO输出信号短接到公共信号，然后根据手动复位指令返回正常操作。每个伺服系统的输出电压、电流和自杀继电器均通过诊断进行监控。TSVO最多可以提供六个LVDT阀位输入的激励，TSVO也接受来自这些输入的输入。
IS200VSVOH1B
IS200VSVOH1B is a VME servo control board manufactured by General Electric and is part of the Mark VI series used in gas turbine control systems. The four electro-hydraulic servo valves that operate the steam/fuel valve are guided by the servo control (VSVO) board. Usually, two servo terminal boards are used to separate these four channels (TSVO or DSV0). Use a linear variable differential transformer to determine valve position (LVDT). VSVO executes loop control algorithm. On the J5 plug on the front panel and the J3J4 connector on the VME rack, three cables are connected to the VSVO. The JR1 connector is used to provide simplex signals for TSVO, while the JR1, JS1, and JT1 connectors are used to fan out TMR signals.
IS200VSVOH1B
Insert the external trip of the protection module into JD1 or JD2. IS20ovsvOH1B installation: Turn off the processor rack of VME. Place the board in place and manually press the top and bottom control rods into the base of the edge connector. Tighten the self tapping screws at the top and bottom of the front panel. The cable connection to the TSVO terminal board is made through the J3 and J4 connectors on the upper and lower parts of the VME rack. In order to secure the cables, they use a locking connection. Start the VME rack and view the diagnostic indicators on the front panel. IS20ovsvOH1B operation: LVDT position feedback, LVDT excitation, bidirectional servo current output, and pulse rate flow input are all included in the four channels of VSVO.
IS200VSVOH1B
For each servo control loop, one, two, three, or four LVDTs can be selected. For the application of measuring gas turbine flow, three inputs are provided. These signals are sent directly to J5 on the front of the VSVO board through the TSVO. When power is off, each servo output has a dedicated suicide relay that, when controlled by firmware, shortens the VSVO output signal to a common signal and returns to normal operation according to a manual reset command. The output voltage, current, and suicide relay of each servo system are monitored through diagnosis. TSVO can provide excitation for up to six LVDT valve position inputs, and TSVO also accepts inputs from these inputs.
