继电器输出通道：DS200TCTGG1AFF通常配备多个继电器输出通道，用于控制外部设备，如电机、阀门、灯光等。模块化设计：这种继电器输出板通常采用模块化设计，可以轻松更换或扩展继电器通道，以满足不同的应用需求。高可靠性：具有高可靠性，适用于需要稳定和可靠的继电器操作的应用，如安全关键系统。电流和电压容量：通常具有高电流和电压容量，可用于控制各种类型的负载，包括大功率设备。故障诊断：可能具有故障诊断功能，可帮助用户识别和排除继电器通道中的问题。通信接口：某些型号可能配备通信接口，以便与其他系统集成，实现远程监控和控制。防护等级：具有适当的防护等级，以适应不同的工业环境，包括工厂和户外应用。
DS200TCTGG1AFF

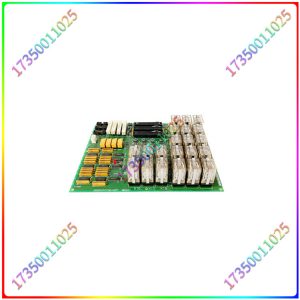

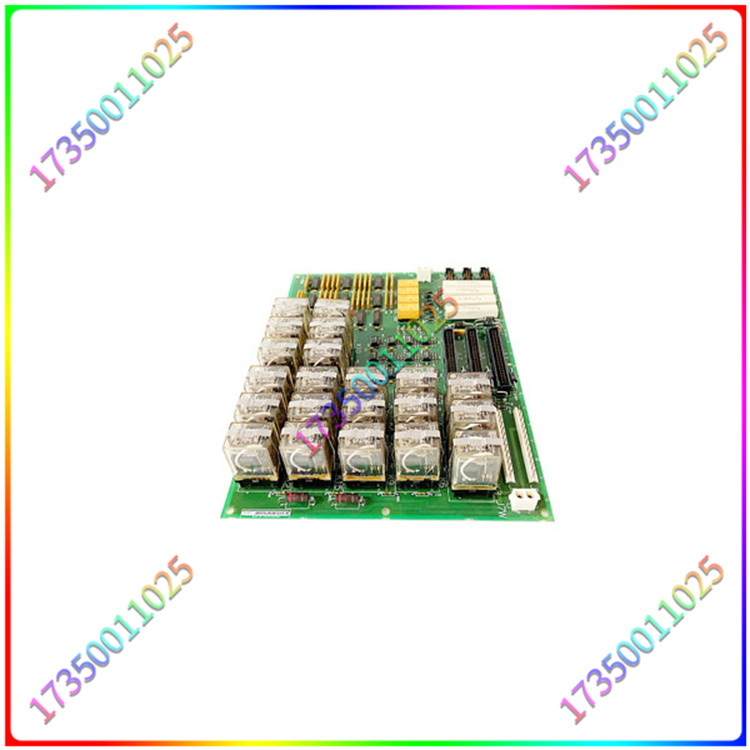

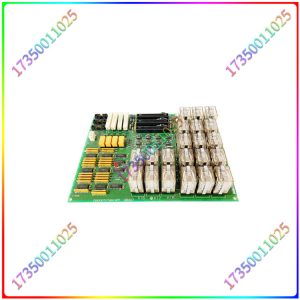

GE DS200TCTGG1AFF 继电器输出板跳闸板配有21个插入式继电器、3个50针连接器和2个12针连接器。每个连接器都分配有唯一的ID，以便操作员在安装过程中重新连接。分配给50针连接器的是JY、JLX和LZ，分配给12针连接器的是N和M。应特别考虑安装在电路板上的21个继电器是易碎的。继电器是机电式设计，很容易损坏。电路板也可能因静电积聚而损坏，因此在收到包装盒时，用户取出产品检查是否有任何损坏是非常重要的。盒子是用安全胶带密封的，如果胶带破裂，表明盒子在运输过程中被篡改过。建议该板只能由合格的用户操作，以防止发生任何安全错误，从而导致生产率下降。
DS200TCTGG1AFF
Relay output channels: DS200TCTGG1AFF is usually equipped with multiple relay output channels for controlling external devices such as motors, valves, lights, etc. Modular design: This type of relay output board usually adopts a modular design, which can easily replace or expand relay channels to meet different application requirements. High reliability: With high reliability, suitable for applications that require stable and reliable relay operation, such as safety critical systems. Current and voltage capacity: Usually with high current and voltage capacity, it can be used to control various types of loads, including high-power equipment. Fault diagnosis: It may have a fault diagnosis function that can help users identify and troubleshoot problems in relay channels. Communication interface: Some models may be equipped with communication interfaces for integration with other systems for remote monitoring and control. Protection level: Having an appropriate level of protection to adapt to different industrial environments, including factory and outdoor applications.
DS200TCTGG1AFF
The GE DS200TCTGG1AFF relay output board trip board is equipped with 21 plug-in relays, 3 50 pin connectors, and 2 12 pin connectors. Each connector is assigned a unique ID for the operator to reconnect during the installation process. JY, JLX, and LZ are assigned to the 50 pin connector, while N and M are assigned to the 12 pin connector. Special consideration should be given to the fact that the 21 relays installed on the circuit board are fragile. The relay is designed electromechanical and is easily damaged. Circuit boards may also be damaged due to static electricity accumulation, so it is very important for users to remove the product and check for any damage when receiving the packaging box. The box is sealed with safety tape, and if the tape breaks, it indicates that the box has been tampered with during transportation. It is recommended that the board should only be operated by qualified users to prevent any safety errors that may lead to a decrease in productivity.
