VMIVME-7698-345装置配备了赛扬单插槽插槽370处理器。它设计有一个能够支持Windows NT和Windows2000的操作系统，然后是Linux,VxWorks,QNX和Solaris。VMIVME-7698-345模块配备了一系列用于嵌入式应用的特殊功能。有高达512兆字节的IDE CompactFlash (可选)。有三个可编程的16位定时器，具有32千字节的电池备份SRAM。该装置能够支持远程以太网引导，并配备了集成的软件可选看门狗定时器带复位。VMIVME-7698-345能够支持VMEbus P2连接到硬盘/软盘驱动器。有一个PMC扩展站点，具有VMEbus P2输入和输出。支持PC MIP扩展站点以及VME64模式 (A32/A24/D32/D16/DO8/MBLT64/BLT32)。VMEbus配备了中断处理程序、灭弧室和系统控制器。
VMIVME-7698-345
特点:带2兆字节SGRAM板载快速以太网控制器，支持10BaseT和100BaseTX接口带有VMEbus P2 I/O的板载Ultra DMA/33硬盘和Foppy驱动器控制器两个高性能16550兼容串行端口前面板上的PS/2风格键盘和鼠标端口VME64连接器。基于Abaco Systems / VMIC VMIVME-7698单槽赛扬插座370处理器的VME / VME64单板计算机配有带MMX的英特尔赛扬处理器。赛扬处理器具有32位寻址和64位数据总线。板载DRAM是VMEbus的双端口。系统和视频BIOS被提供在可重新编程的闪存中。VMIVME-7698为用户提供了三个16位定时器(除了系统定时器之外),与82C54兼容。这些定时器映射到I/O空间，并且完全是软件可编程的。
VMIVME-7698-345

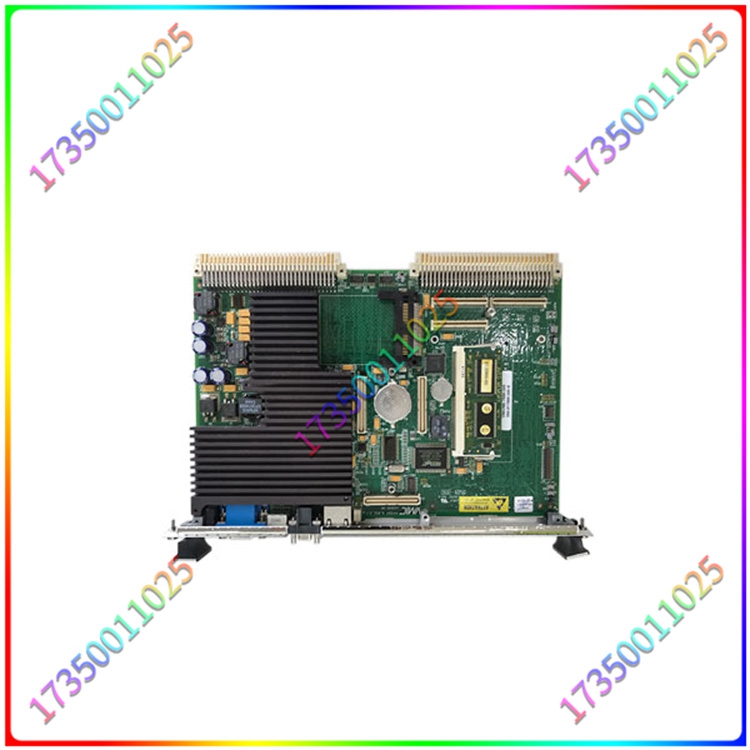

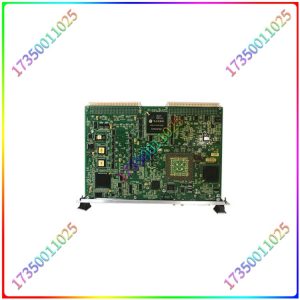

The VMIVME-7698-345 device is equipped with a Celeron single slot 370 processor. It is designed with an operating system that supports Windows NT and Windows 2000, followed by Linux, VxWorks, QNX, and Solaris. The VMIVME-7698-345 module is equipped with a series of special functions for embedded applications. IDE CompactFlash with up to 512 megabytes (optional). There are three programmable 16 bit timers with a 32 kilobyte battery backup SRAM. This device can support remote Ethernet boot and is equipped with integrated software with optional watchdog timer and reset. VMIVME-7698-345 can support VMEbus P2 connection to hard/floppy drives. There is a PMC extension site with VMEbus P2 inputs and outputs. Supports PC MIP extension sites and VME64 mode (A32/A24/D32/D16/DO8/MBLT64/BLT32). VMEbus is equipped with interrupt handling programs, arc extinguishing chambers, and system controllers.
VMIVME-7698-345
Features: Equipped with a 2-megabyte SGRAM onboard fast Ethernet controller, supporting 10BaseT and 100BaseTX interfaces. Equipped with VMEbus P2 I/O onboard Ultra DMA/33 hard drive and Foppy drive controller, two high-performance 16550 compatible serial ports. PS/2 style keyboard and mouse port VME64 connector on the front panel. The VME/VME64 single board computer based on Abaco Systems/VMIC VMIVME-7698 single slot Celeron socket 370 processor is equipped with an Intel Celeron processor with MMX. The Celeron processor has 32-bit addressing and 64 bit data bus. On board DRAM is a dual port of VMEbus. The system and video BIOS are provided in reprogrammable flash memory. VMIVME-7698 provides users with three 16 bit timers (in addition to the system timer), which are compatible with 82C54. These timers are mapped to the I/O space and are completely software programmable.
VMIVME-7698-345
