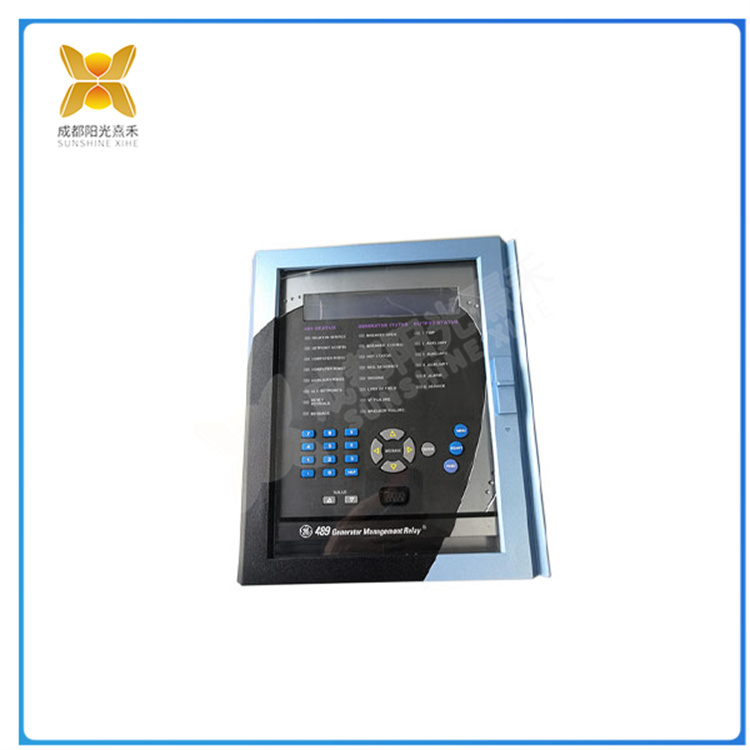

489-P5-LO-A20-E是通用电气SR系列继电器中的阿格多线继电器(与通用电气多线469电机保护继电器和通用电气多线735馈线保护继电器属于同一系列)。)489-P5-LO-A20-E设计用于发电机保护，可用于感应或同步发电机。该装置可在25、50或60赫兹下运行。489-P5-LO-A20-E设计有40个字符的显示屏，允许用户查看数值信息、诊断和设定值。前面板包括数字键盘、状态指示器、数值上下键、RS232端口接口以及控制和编程键，包括复位、输入、菜单、菜单向上和菜单向下键。这允许在不连接外部计算机的情况下进行控制。
SR489-P5-LO-A20-E
背板包括12个RTD输入、6个输出继电器、2个RS485通信端口和4个VT输入。RTD可现场编程。通信端口可以使用高达19200 bps的ModbusRTU或DNP 3.0协议(或两者都使用)。489-P5-LO-A20-E的背板还包括四个隔离的4-20 mA模拟输入和输出以及七个可分配的数字输入。有七个CT输入用于三相输出/三相零线和接地电流检测，以及一个独立的安全和滤波器接地。489-P5-LO-A20-E上的所有输入满足SWC、C37.990 EMI、RFI抗干扰性。
SR489-P5-LO-A20-E
继电器是一种带有隔离功能的自动切换器件，在远程控制、遥测、通讯、自动控制、机电一体化、电力电子等领域有着广泛的应用。继电器通常具有一种感应机制（输入部件），它能反应特定的输入参数（例如电流，电压，功率，阻抗，频率，温度，压力，速度，光等）；具有执行机构（输出部），能够对受控线路进行“通”和“断”的控制；在继电器的输入部与输出部之间，也设有一个中介装置（驱动部），用于对输入量进行耦合、分离、功能处理和驱动输出部件。
SR489-P5-LO-A20-E
489-P5-LO-A20-E is an Agduo line relay in the General Electric SR series (belonging to the same series as the General Electric multi line 469 motor protection relay and the General Electric multi line 735 feeder protection relay) 489-P5-LO-A20-E is designed for generator protection and can be used for induction or synchronous generators. The device can operate at 25, 50, or 60 Hz. The 489-P5-LO-A20-E is designed with a 40 character display screen, allowing users to view numerical information, diagnose, and set values. The front panel includes a numeric keyboard, status indicator, numerical up and down keys, RS232 port interface, and control and programming keys, including reset, input, menu, menu up and menu down keys. This allows for control without connecting to external computers.
SR489-P5-LO-A20-E
The backplane includes 12 RTD inputs, 6 output relays, 2 RS485 communication ports, and 4 VT inputs. RTD can be programmed on-site. The communication port can use up to 19200 bps ModbusRTU or DNP 3.0 protocol (or both). The backplane of 489-P5-LO-A20-E also includes four isolated 4-20 mA analog inputs and outputs, as well as seven distributable digital inputs. There are seven CT inputs for three-phase output/three-phase neutral and ground current detection, as well as an independent safety and filter grounding. All inputs on 489-P5-LO-A20-E meet SWC, C37.990 EMI, RFI anti-interference requirements
SR489-P5-LO-A20-E
Relay is an automatic switching device with isolation function, which has wide applications in remote control, telemetry, communication, automatic control, mechatronics, power electronics, and other fields. Relays usually have an induction mechanism (input component) that can reflect specific input parameters (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Equipped with an executing mechanism (output unit) that can control the “on” and “off” of controlled circuits; There is also an intermediate device (driving part) between the input and output parts of the relay, which is used for coupling, separating, functional processing, and driving the output components of the input quantity
