由于阿格SR469-P5-HI-A20-E电机管理继电器具有热容量的不平衡偏置，因此应启用热容量使用，以便不平偏置电流的热效应被添加到热容量中。对于不平衡偏置K因数，该值由K因数不平衡引起的转子中流动的负电流的贡献来计算。有一个公式基于字母的经验数据统计，它等于230除以单位锁定转子电流的平方。锁走转子电流=631或6.31乘以FLA。这个继电器SR469-P5-HI-A20-E的冷热曲线比是多少。通过使用SR469-P5-HI-A20-E涨电器的数据表，安全失速冷热时间曲线比被设置为16/18，等于0.89，通过用热安全失速时间除以冷安全失速时间，可以简单地计算出热曲线和冷曲线的比值，也可以使用电机,热极限曲线。SR469-P5-HI-A20-E继电器的电阳温度检测墨最大偏置额定值是多少，电阴温度检测器偏置最大额定值是一个设定值，设定为绝缘额定值或稍低，为了将电阳温度检测器的最大偏差设置为F级绝缘，电机的额定温度为155摄氏度 。

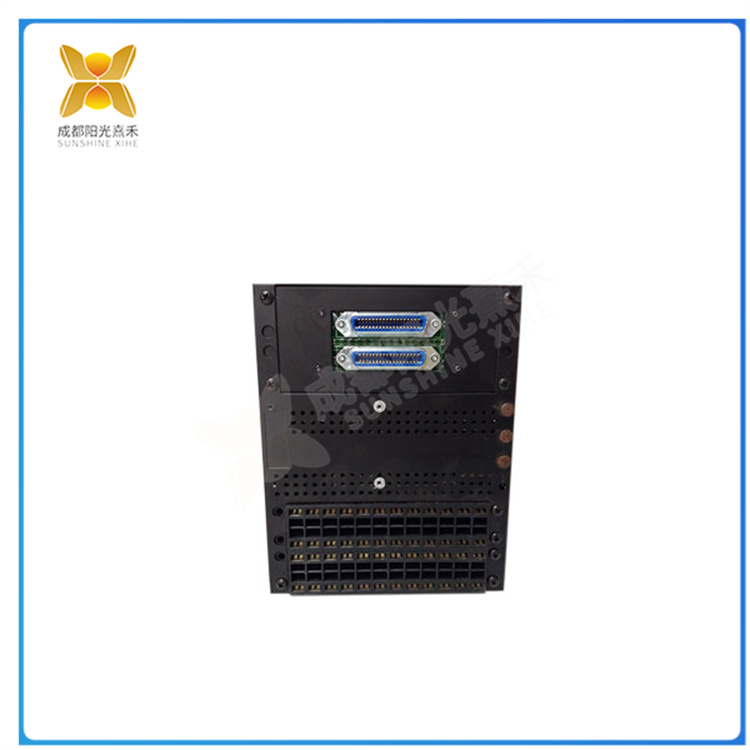

SR469-P5-HI-A20-E
SR469-P5-HI-A20-E来自GE Multilin，是SR469电机管理继电器系列的一部分。该装置设计有5安培相位CT次级线圈。SR 469继电器设计用于中压电机，提供集成管理和保护。SR469-P5-HI-A20-E提供70-265伏交流电，90-300伏直流电控制电源。该设备有一个增强型前面板。但是，如果您需要一个可以在恶劣环境中使用的装置，请参考我们的SR469-P5-HI-A20-E-H清单，除了一个额外的恶劣环境保形涂层外，它在各方面都与该装置相似。SR469-P5-H-A20-E有一个精心设计的前面板，易于使用。
SR469-P5-HI-A20-E
该面板包括一个RS-232程序端口接口，波特率为9600，可编程高达19200波特。这个面板有一个抽出式把手，可以密封，以防止任何未经授权的移动。前面板有一个大液晶显示器，可显示40个字符。用户可以通过该显示器在本地看到跳闸或报警等诊断信息。此外，面板还有电机和翰出状态指示器、装置指示器、数字键盘、控制和编程键，包括复位、退出和菜单按钮，以及允许用户更改设定值的数值键。GE Multilin手册和用户指南将提供关于该装置的更多细节，包括关于安装、搬运、安全和维护的信息。
SR469-P5-HI-A20-E
Due to the unbalanced bias of the thermal capacity of the AGG SR469-P5-HI-A20-E motor management relay, the use of thermal capacity should be enabled so that the thermal effect of the unbalanced bias current is added to the thermal capacity. For the unbalanced bias K-factor, this value is calculated by the contribution of the negative current flowing in the rotor caused by the K-factor imbalance. There is a formula based on empirical data statistics of letters, which is equal to 230 divided by the square of the unit locked rotor current. Lock rotor current=631 or 6.31 times FLA. What is the cold to hot curve ratio of this relay SR469-P5-HI-A20-E. By using the data sheet of the SR469-P5-HI-A20-E expander, the safe stall cold to hot time curve ratio is set to 16/18, which is equal to 0.89. By dividing the hot safe stall time by the cold safe stall time, the ratio of the hot curve to the cold curve can be easily calculated, and the electric and thermal limit curves can also be used. What is the maximum bias rating of the anode temperature detection ink for the SR469-P5-HI-A20-E relay? The maximum bias rating of the cathode temperature detector is a set value, set to the insulation rating or slightly lower. In order to set the maximum deviation of the anode temperature detector to Class F insulation, the rated temperature of the motor is 155 degrees Celsius.
SR469-P5-HI-A20-E
SR469-P5-HI-A20-E comes from GE Multilin and is part of the SR469 motor management relay series. The device is designed with a 5-ampere phase CT secondary coil. The SR 469 relay is designed for medium voltage motors, providing integrated management and protection. SR469-P5-HI-A20-E provides 70-265 V AC and 90-300 V DC control power supply. The device has an enhanced front panel. However, if you need a device that can be used in harsh environments, please refer to our SR469-P5-HI-A20-E-H list. Except for an additional harsh environment conformal coating, it is similar to the device in all aspects. SR469-P5-H-A20-E has a carefully designed front panel that is easy to use.
SR469-P5-HI-A20-E
This panel includes an RS-232 program port interface with a baud rate of 9600 and programmable up to 19200 baud. This panel has a pull-out handle that can be sealed to prevent any unauthorized movement. The front panel has a large LCD display that can display 40 characters. Users can view diagnostic information such as trips or alarms locally through this display. In addition, the panel also has motor and output status indicators, device indicators, numeric keyboards, control and programming keys, including reset, exit, and menu buttons, as well as numerical keys that allow users to change set values. The GE Multilin manual and user guide will provide more details about the device, including information on installation, handling, safety, and maintenance.
